How to Vent a Laser Engraver?

Properly venting your laser engraver is essential for safety and air quality. You need to redirect smoke and fumes away from your workspace. This helps prevent respiratory irritation and protects your equipment from residue buildup. Good ventilation is key for a healthy crafting environment.

Laser engraving produces harmful byproducts like particulates and gases. Without proper venting, these can quickly fill your room. This not only makes the air unpleasant but can also damage sensitive electronics. Ensuring your engraver is well-vented protects your health and extends the life of your machine.

• Always vent outdoors or into a dedicated exhaust system.
• Use flexible ducting that fits snugly onto your engraver’s exhaust port.
• Ensure the ducting is properly sealed to prevent leaks.
• Consider an inline fan for longer duct runs or to boost airflow.
• Regularly check your vent system for blockages or damage.

Let’s walk through exactly how to get your laser engraver properly vented, step by step.

So, you’ve got a shiny new laser engraver, and you’re ready to create some amazing things. That’s fantastic! But before you fire it up, let’s talk about something super important: getting that smoke and those fumes out of your space. It’s not just about a nicer smell; it’s about keeping yourself healthy and your machine happy. Let’s get your laser engraver properly vented!

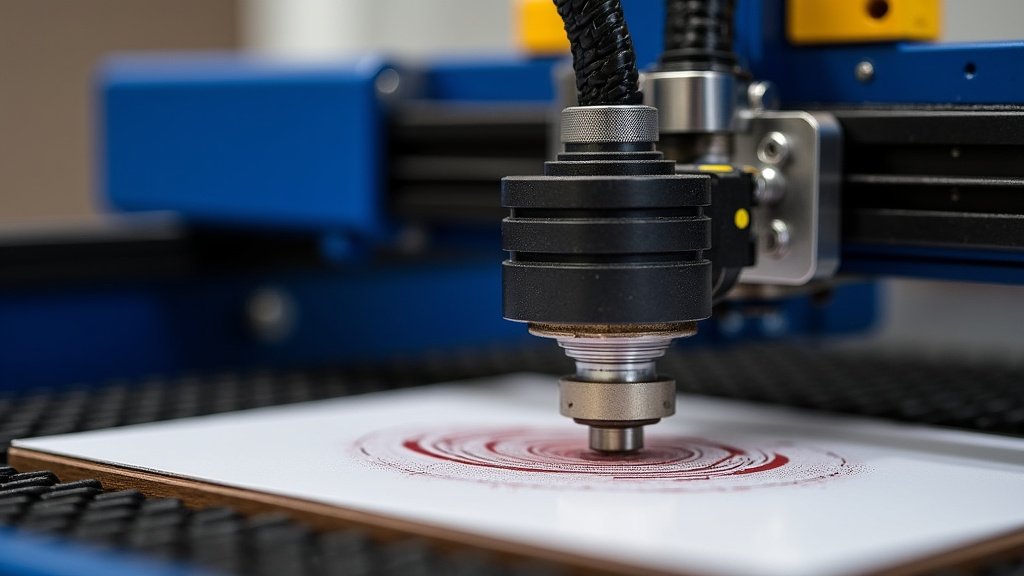

Setting Up Your Laser Engraver Exhaust System

Getting your exhaust system hooked up right is your first line of defense. It’s the most direct way to manage the stuff that comes off your workpiece when the laser hits it. Think of it like giving your engraver a tiny personal chimney.

Choosing the Right Venting Destination

Where does all that smoke go? That’s a big question. The safest and most effective place is straight outside. This removes the fumes and particulates completely from your home or workshop. You’re essentially creating a direct path for them to escape.

Venting Outdoors: The Gold Standard

This is the ideal setup. You’ll be running a duct from your engraver directly through a window, a wall, or an existing vent that leads outside. This ensures no fumes linger in your crafting area. It’s like opening all the windows on a spring day, but for your laser!

When Outdoor Venting Isn’t Possible

Sometimes, drilling holes or running ducts outside just isn’t an option. If that’s your situation, don’t despair. You might consider a filtration system. These systems capture particles and gases, cleaning the air before recirculating it. However, research suggests these might not be as effective for all types of laser engraving materials, especially plastics (American Industrial Hygiene Association). You’ll want to choose a filter designed for your specific materials.

Understanding Your Engraver’s Exhaust Port

Take a peek at the back or side of your laser engraver. You’ll see a small port. This is where the magic (or, well, the exhaust) happens. It’s usually a round opening where you’ll attach your vent hose.

Common Port Sizes and Adapters

These ports come in various sizes. You might find a 3-inch, 4-inch, or even a 6-inch diameter. It’s important to match your ducting to this size. If you can’t find a direct match, adapters are readily available. These little lifesavers help you transition from one size to another. Always measure your engraver’s port to be sure.

Selecting Your Venting Materials: Ducting and Fans

Now, let’s talk about the stuff you’ll need to make this happen. The right materials ensure your system works efficiently and safely.

Choosing the Right Ducting

You need flexible ducting. This is usually made of a durable material like reinforced foil or PVC. It needs to be flexible enough to bend around corners but sturdy enough not to collapse. Many engraver manufacturers recommend specific types of foil ducting. We found that a smooth interior is best to prevent buildup. Avoid ribbed ducting if you can, as debris can get caught.

Do You Need an Inline Fan?

This is a common question. If your vent run is short (like, just a few feet to a window), your engraver’s built-in fan might be enough. But if you have a long duct run (more than 5-10 feet), sharp bends, or are using a filtration system, you’ll likely need an inline duct fan. This fan boosts the airflow, making sure smoke doesn’t just sit in the ductwork. Many DIYers find that an inline fan is a worthwhile upgrade for better performance.

Sealing the Deal: Airtight Connections

This is non-negotiable. Leaks are bad news. They let fumes escape into your workspace. You need to use strong, heat-resistant tape to seal every connection point. Think foil tape, not your average duct tape. This includes where the duct attaches to the engraver, any adapters, and where it exits your home. A snug, sealed connection is key to a safe operation.

Step-by-Step Venting Installation Guide

Let’s get this installed! We’ll walk through it so you can feel confident.

Step 1: Measure and Plan Your Route

Before you buy anything, measure! How far is the engraver from your exit point (window, wall)? How many bends will the ducting need? This helps you determine the length of ducting and if you need an inline fan. Sketching it out can be helpful.

Step 2: Connect the Ducting to Your Engraver

Slide one end of your flexible ducting onto the exhaust port of your laser engraver. Make sure it fits snugly. Then, secure it with a hose clamp or strong tape. You want a tight seal here. If it feels loose, add more tape or try a different clamp.

Step 3: Route the Ducting to Your Exit Point

Carefully guide the ducting along your planned path. Try to make the bends as gentle as possible. Sharp turns restrict airflow. If you’re going through a window, you might need a window vent kit. These are often custom-fit panels with a hole for your ducting.

Step 4: Secure the Exit Point

Once the ducting reaches your window or wall, secure it firmly. Again, airtight is the goal. Seal around the ducting where it passes through the window or wall. You don’t want any of those smoky byproducts sneaking back in. For wall penetrations, use a proper vent hood to keep pests and weather out.

Step 5: Install an Inline Fan (If Needed)

If your plan requires an inline fan, you’ll typically install it in the middle of your duct run. Follow the manufacturer’s instructions carefully. Ensure it’s oriented correctly for airflow and that both ends are securely connected and sealed.

Step 6: Test for Leaks and Airflow

This is the final check! With your engraver turned on (but perhaps not engraving anything just yet), feel along the entire duct run. Can you feel any air escaping? If so, add more tape. Also, check that there’s a good flow of air coming out of the exit point. If it seems weak, you might need that inline fan or a less restrictive duct path.

Maintaining Your Ventilation System

Your ventilation isn’t a “set it and forget it” deal. Regular maintenance keeps it working effectively and safely.

Check for Blockages and Buildup

Over time, dust and debris can build up inside your ducting. This can restrict airflow and become a fire hazard. We found that it’s good practice to inspect your ducts regularly, especially if you engrave materials that produce a lot of residue. If you see buildup, carefully clean it out.

Inspect for Damage

Ducting can get kinks, tears, or holes. These compromise the system. Periodically walk the length of your ducting and look for any signs of damage. Small tears can be patched with more foil tape.

Filter Replacement (If Applicable)

If you’re using a filtration system, keep a close eye on the filters. They have a lifespan. When they become clogged, they won’t clean the air effectively. Replace filters according to the manufacturer’s recommendations. Many systems have indicators for when filters need changing.

Here’s a quick checklist to keep your ventilation running smoothly:

• Check duct connections for tight seals.
• Inspect the entire duct run for kinks or tears.
• Ensure airflow is strong at the exit point.
• Look for any signs of residue buildup inside the duct.
• Confirm any inline fan is running correctly.
• Replace filters on schedule if using a filtration system.

Conclusion

You’ve learned how to set up a safe and effective ventilation system for your laser engraver. Properly venting your machine protects your health and your equipment. Remember to always aim for an outdoor exhaust or a robust filtration system. Pay close attention to sealing all connections and planning your duct route. Regular maintenance, like checking for blockages and damage, keeps your system running smoothly. Take these steps to ensure a healthier and more enjoyable crafting experience.

Frequently Asked Questions

How do I know if my laser engraver needs an inline fan?

You’ll likely need an inline fan if your duct run is longer than 5-10 feet, has several sharp bends, or if you’re using a filtration system. An inline fan provides the extra power needed to ensure good airflow. If the air coming from your exhaust feels weak, it’s a good sign you need one.

Can I vent my laser engraver into my attic?

It’s generally not recommended to vent directly into your attic. Attics can be poorly ventilated and may not have a clear path to the outside. This can lead to smoke and fumes building up, creating potential fire hazards and air quality issues in your home. Always aim for a direct outdoor vent or a properly filtered system.

What’s the best way to seal duct connections for my laser engraver?

The best way to seal duct connections is with a strong, heat-resistant foil tape. Avoid using standard cloth duct tape, as it may not hold up well to the heat and fumes. Ensure each connection is snug before applying the tape, and wrap it around securely to create an airtight seal. This prevents any harmful fumes from escaping into your workspace.

How often should I clean my laser engraver’s ventilation ducting?

You should inspect your ducting for buildup regularly, especially if you engrave materials that produce a lot of residue. We found that checking every few months is a good practice. If you notice significant buildup or a decrease in airflow, it’s time for a thorough cleaning. Clean out any debris carefully to maintain optimal airflow and prevent fire hazards.

What type of filter should I use if I can’t vent outdoors?

If you cannot vent outdoors, you’ll need a filtration system with filters specifically designed for laser engraving fumes. This typically means using a HEPA filter for particulates and an activated carbon filter for gases. Research which filter types are most effective for the specific materials you’ll be engraving, as different materials produce different types of harmful byproducts.
