Your laser making a double line usually happens because of a misaligned mirror or a dirty lens. These issues can cause the laser beam to split, resulting in a duplicated, fuzzy cut or engraving. It’s a common problem, but thankfully, often a simple fix.
When you see a double line, it’s a clear sign that your laser isn’t focusing its energy in a single, powerful spot. This can affect the precision of your work and leave you frustrated. We’ve researched this common snag, and understanding the cause is the first step to getting back to clean, crisp results.
- Double lines mean your laser beam is splitting.
- The main culprits are a dirty lens or misaligned mirrors.
- Alignment is key for a precise laser beam.
- A dirty lens obstructs a clean, focused beam.
Let’s get to the bottom of why your laser is doubling up and walk through how to fix it so you can get back to creating.

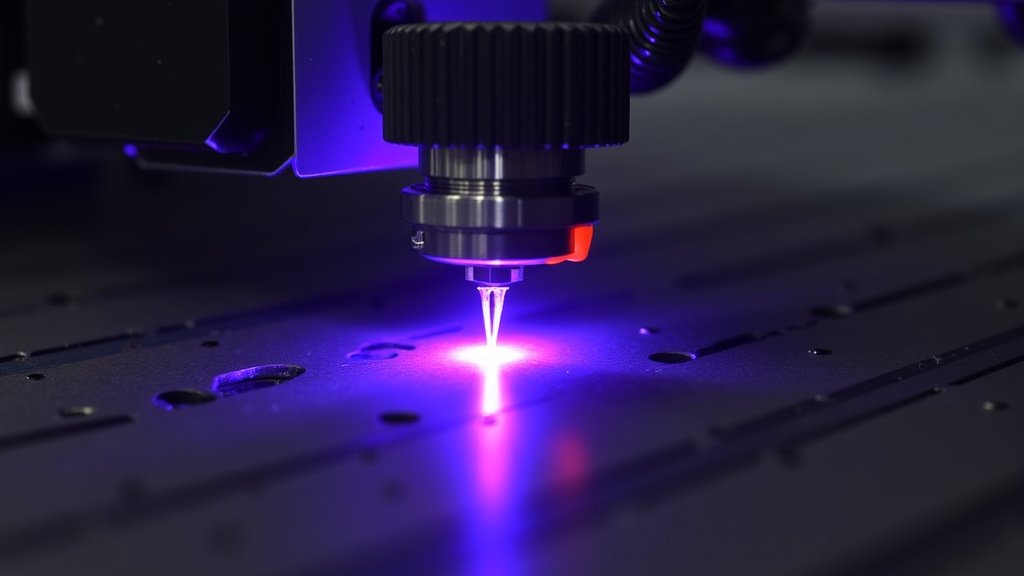

Troubleshooting Your Laser’s Double Line Output
Seeing a double line from your laser can be quite frustrating. It looks like your laser is working, but the result is fuzzy or duplicated. This typically means the laser beam isn’t hitting its target cleanly. We’ve looked into this common issue, and the most frequent causes are quite straightforward to fix. Your laser’s precision depends on several key components working in harmony. When they don’t, you get this unwanted effect.
Understanding Why Your Laser Beam Splits
The laser beam itself is a very focused and powerful tool. For it to work correctly, it needs to travel in a straight, narrow path. Think of it like a spotlight; you want a single, bright point, not two dim ones. When your laser creates a double line, it signals that the beam is splitting or reflecting improperly somewhere along its journey. This split beam then hits the material twice, but slightly offset, creating the duplication you see.
The Critical Role of Mirror Alignment
Your laser uses a series of mirrors to direct the beam from the laser source to the cutting or engraving head. These mirrors must be perfectly angled. If even one mirror is slightly off, it can cause the beam to bounce in an unintended direction. This misalignment is one of the primary reasons for double lines. It’s like trying to bounce a ball perfectly into a hoop; the angle of your throw matters immensely.
How Mirrors Guide the Laser
The laser beam starts at its source, usually a tube. It then bounces off a series of mirrors. Each mirror is precisely positioned. It directs the beam along the X and Y axes of your machine. The final mirror is typically in the laser head. This directs the beam downwards onto your material. If any of these mirrors are out of alignment, the beam’s path is altered. This results in an incorrect aim at the final destination.
Signs of Mirror Misalignment
You might notice other symptoms alongside double lines. The beam might appear to be hitting off-center on the nozzle. You could also see scorch marks on the mirrors themselves. Sometimes, the beam might not even reach the material at all. These are all red flags. They indicate that your mirrors need attention and adjustment. Checking them should be a top priority.
The Impact of a Dirty Lens
Another common culprit is a dirty lens. This is usually the lens at the very tip of the laser head. Its job is to focus the beam into a tiny, precise point. If this lens is smudged or dirty, it can scatter the light. This scattering can cause the beam to spread out. When the beam spreads, it loses its sharpness. This can also lead to a duplicated or fuzzy cut edge. Think of looking through a dirty window; things become blurry and indistinct.
How a Dirty Lens Affects the Beam
The focusing lens is the last optical component the beam encounters. It must be crystal clear for optimal performance. Dust, smoke residue, or even fingerprints can accumulate on the lens surface. When the laser beam passes through these contaminants, it gets distorted. Instead of a clean, sharp point, you get a less defined spot. This diffused energy hits the material unevenly. This is what creates that unwanted double line effect.
Why Lens Cleaning is Essential
Regular cleaning of your laser lens is vital for consistent results. Lasers, especially when cutting or engraving, produce smoke and debris. This debris can settle on the lens. Over time, this buildup will degrade beam quality. Many laser manufacturers recommend cleaning the lens after a certain number of operating hours or a specific amount of material processed (LightBurn Software). Keeping it clean ensures the beam remains focused and powerful.
Steps to Correcting Double Lines
Now that you know the likely causes, let’s talk about how to fix them. You’ll need a bit of patience and attention to detail. Most laser machines come with alignment tools or instructions. If yours didn’t, online resources can often guide you through the process. Safety first! Always ensure your laser is powered off and disconnected before performing any physical adjustments.
The Laser Mirror Alignment Process
Aligning your mirrors is a methodical process. It involves adjusting the angle of each mirror so the beam travels perfectly straight. You’ll typically use a piece of tape or a special alignment tool. You’ll fire a low-power pulse at each mirror. Then you observe where the dot lands. Your goal is to make that dot land in the center of the next mirror or nozzle. This might take several tries. It’s a bit like tuning a musical instrument; small adjustments make a big difference.
Tools and Techniques for Alignment
You can use heat-resistant tape placed on the mirror mounts. Fire a low-power pulse from the laser. Observe the spot. Adjust the mirror screws to move the dot. You’re looking for the beam to hit the center of the next mirror. Many laser operators prefer using a sight or alignment tool that attaches to the laser head. This tool helps you see the beam’s path more clearly. We found that a systematic approach is best. Adjust one mirror at a time. Check its alignment before moving to the next.
Checking for Consistent Beam Strike
The key is consistency. The beam should strike the center of each mirror. It should also hit the center of the nozzle. You can test this by moving the laser head to different positions on your machine. Fire a low-power pulse at each location. The beam spot on the target material should be roughly the same size and intensity. If the spot changes significantly, your mirrors may need further adjustment. This process ensures the beam is always delivered precisely.
Cleaning Your Laser Lens Properly
Cleaning the lens is simpler than mirror alignment. However, it requires the right materials. Never use abrasive cleaners or rough cloths. These can scratch the lens. You’ll want a dedicated lens cleaning solution and lint-free wipes. Many sources recommend a solution like isopropyl alcohol. Always handle the lens by its edges. Avoid touching the surface. Gentle cleaning prevents damage and ensures optical clarity.
Materials Needed for Lens Cleaning
Gather your supplies before you start. You’ll need:
- Lint-free wipes: microfiber cloths are excellent for this.
- Lens cleaning solution: Isopropyl alcohol (90% or higher) or a specialized laser lens cleaner.
- Gloves: To avoid transferring oils from your fingers.
- Cotton swabs: For getting into tight spots if needed.
The Cleaning Procedure
First, carefully remove the lens from the laser head. Handle it by its edges. Apply a small amount of cleaning solution to the wipe. Gently wipe the lens surface in a circular motion. Work from the center outwards. If there are stubborn spots, use a cotton swab dampened with solution. Avoid excessive pressure. After cleaning, inspect the lens. Ensure no residue remains. Reinstall the lens carefully. A clean lens is essential for a sharp beam focus (RP Photonics).
Checklist for Resolving Double Lines
Here’s a quick checklist to help you tackle the double line issue. Work through these steps systematically. You’ll likely find your solution quickly. Remember, patience is key!
- Power off and unplug your laser machine.
- Inspect your laser mirrors for dust or debris.
- Check if your mirrors are securely mounted and appear angled correctly.
- Carefully remove and clean your laser focusing lens.
- If issues persist, begin the mirror alignment process.
- Test fire at low power after adjustments.
Conclusion
Seeing those frustrating double lines from your laser usually points to a couple of common culprits: misaligned mirrors or a dirty focusing lens. We’ve found that these issues disrupt the beam’s path and focus, leading to imprecise cuts and engravings. The good news is you can likely resolve this yourself. By carefully checking and cleaning your optics, and performing mirror alignment if needed, you’ll restore your laser’s precision. Your next step should be to power down your machine, gather your cleaning supplies, and systematically address these potential problems to get back to creating with confidence.
Frequently Asked Questions
How often should I clean my laser lens?
We recommend cleaning your laser lens regularly, especially if you notice a decline in cut quality or engraving precision. Many users find a routine cleaning every 50-100 operating hours works well, but you might need to clean it more often depending on your material and fume extraction.
Can I use a regular cloth to clean the laser lens?
No, it’s best to avoid regular cloths as they can leave lint or even scratch the delicate lens surface. We found that using lint-free microfiber cloths or specialized lens wipes specifically designed for optics provides the cleanest and safest results.
What happens if my laser mirrors are severely misaligned?
Severe mirror misalignment can cause the laser beam to miss the material entirely or hit it at a very awkward angle. This can lead to weak cuts, burn marks in the wrong places, or the laser beam not reaching the target at all, making it impossible to engrave or cut effectively.
Is there a way to check mirror alignment without firing the laser?
While you can visually inspect mirror positions, a precise alignment check requires firing a low-power pulse. You can do this safely by covering the nozzle opening with heat-resistant tape and observing where the beam strikes. This allows you to see if the beam is centered on each mirror.
My laser still makes double lines after cleaning the lens. What else could it be?
If cleaning the lens didn’t solve the double line issue, the most probable cause is mirror misalignment. We suggest systematically going through the mirror alignment process. Ensure each mirror is directing the beam correctly to the center of the next mirror and finally to the laser head nozzle.
